SGC Lights

SGC Hybrid 120 LED

Sale price Price $255.00 Regular price Unit price  per

Shipping calculated at checkout.

H120

The Hybrid Series is an incredibly bright and portable bicolor light fixture. It is the solution for almost any lighting setup, as it is easy to rig, scalable, and outputs a market leading level of both color quality and brightness for white and warm light.

All models include a variable white light color temperature range of 2700K- 6000K. The Hybrid series has easy to use onboard control interface and wired and wireless DMX512 control.
Constant current drive makes dimming smooth from 0-100% and gives the tubes flicker free operation at any frame rate. Removable battery packs allows for cordless operation and easy swapping keeps you powered on all day. 10-24v DC input.
Specs:

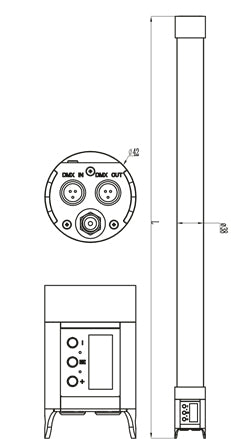

Dimensions: Φ43×1200mm

2x 16000mAh Li-ion rechargeable battery packs 12~24V DC input, 36W max power consumption, >90lm/W light efficiency

Length: 120cm (just under 4 feet)

CCT Range 2700K~6000K, HSI >36000 colors DMX512 addresses can be independently and manually set up for color temperature and intensity, and multiple DMX address combinations can be set for multiple connections.

For help on SGC Hybrid 120, please visit our support page.



Models

H60

H120

Optics

White Diffuser

Beam Angle

150°

Color Temperature

2700K-6000K

Color Temperature Tolerances

±100K

Color Accuracy Standard

CRI>95, TLCT>95

Power Input Range

DC 10~24V

Power Consumption

20W

40W

Power Port

DC input, 2.5*5.5mm barrel connector

Lumens (@6000K)

2300 lm

4600 lm

Dimming

0-100%

Software Interface

On-board Controller with Display

IP Rating

IP50

Operational Temperature

-20 - 40℃

Fixture Dimensions

Φ43×600mm

Φ43×1200mm

Fixture Weight

0.7kg

1.38kg

Battery Capacity

16000mAh

32000mAh

Battery Pack Charging Life

Expected battery pack capacity after 300 charging cycles: >70%

Expected Lamp Life

25000H

Controls

Manual on-board control, Wired DMX

Mounting

Q-Block


Fullfilled in Hong Kong or Los Angeles, CA depending on your shipment address
