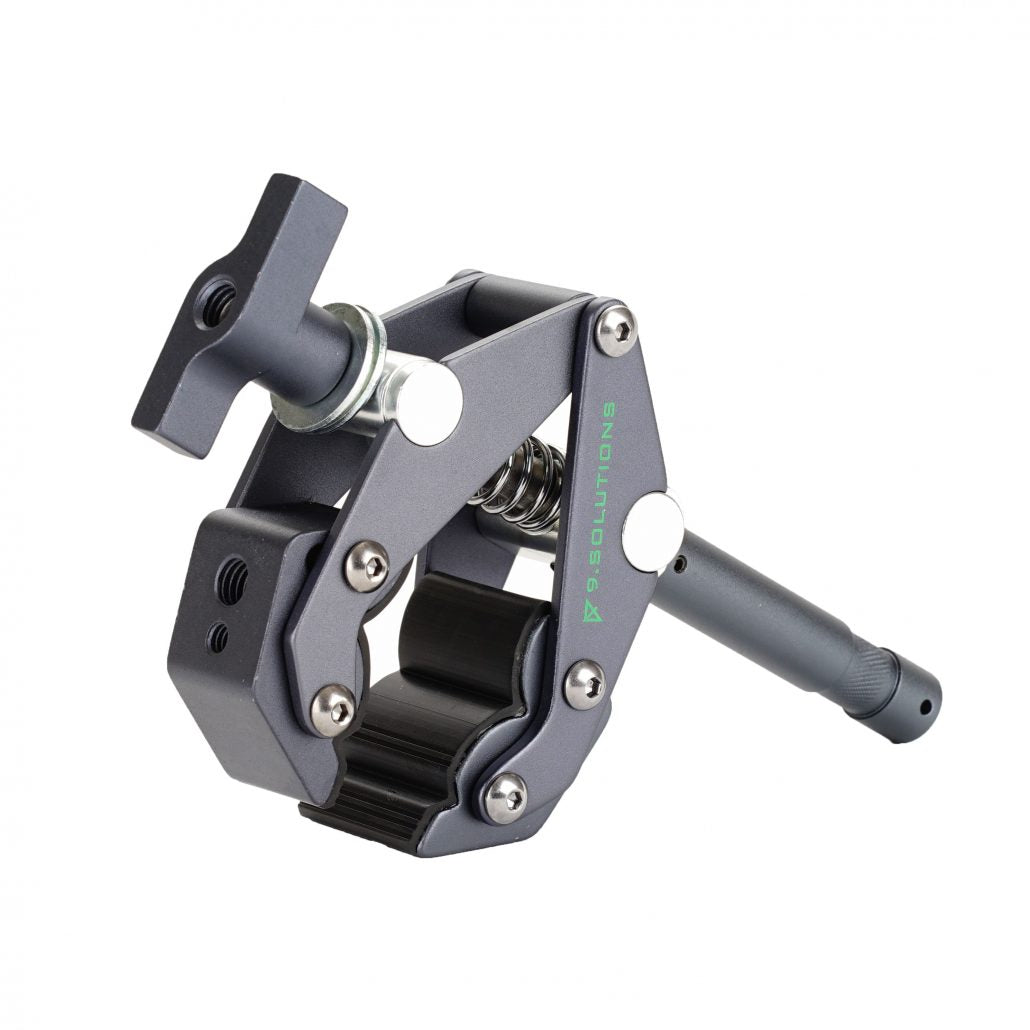

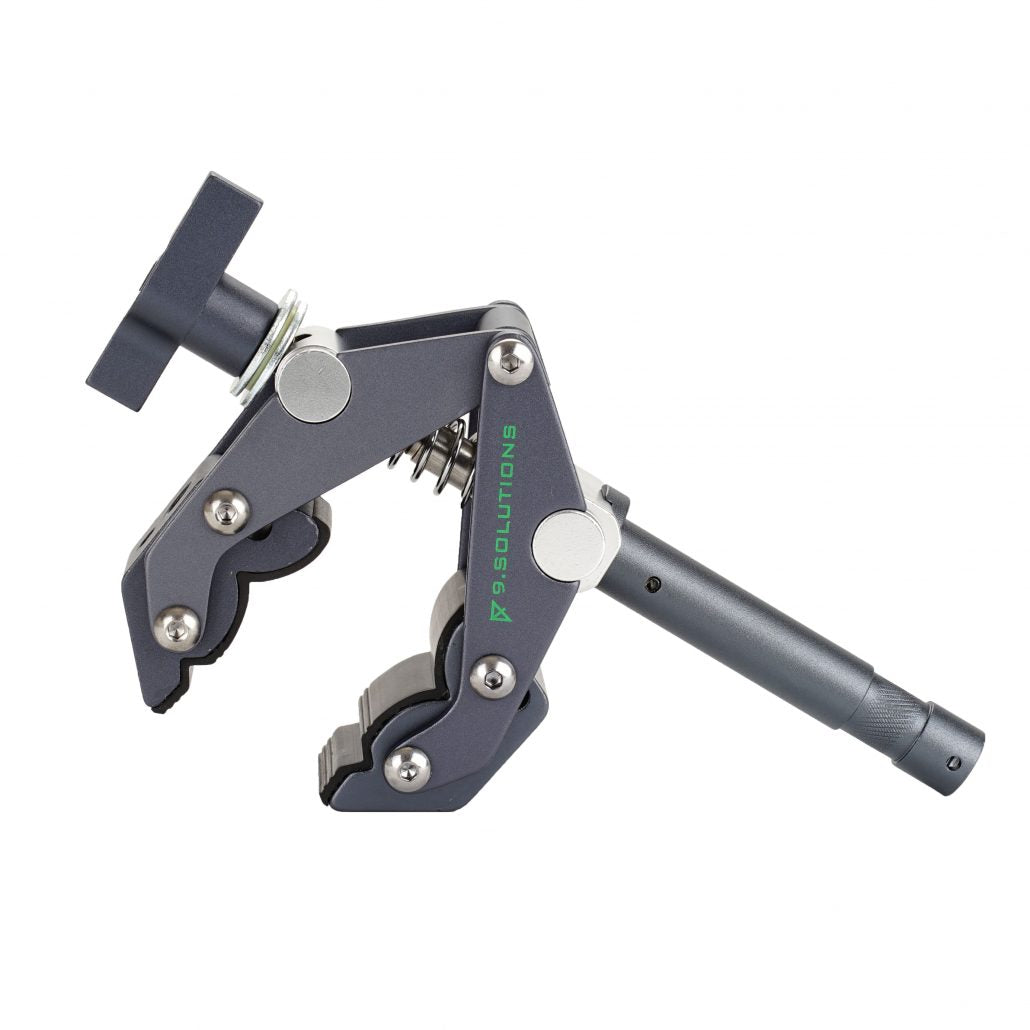

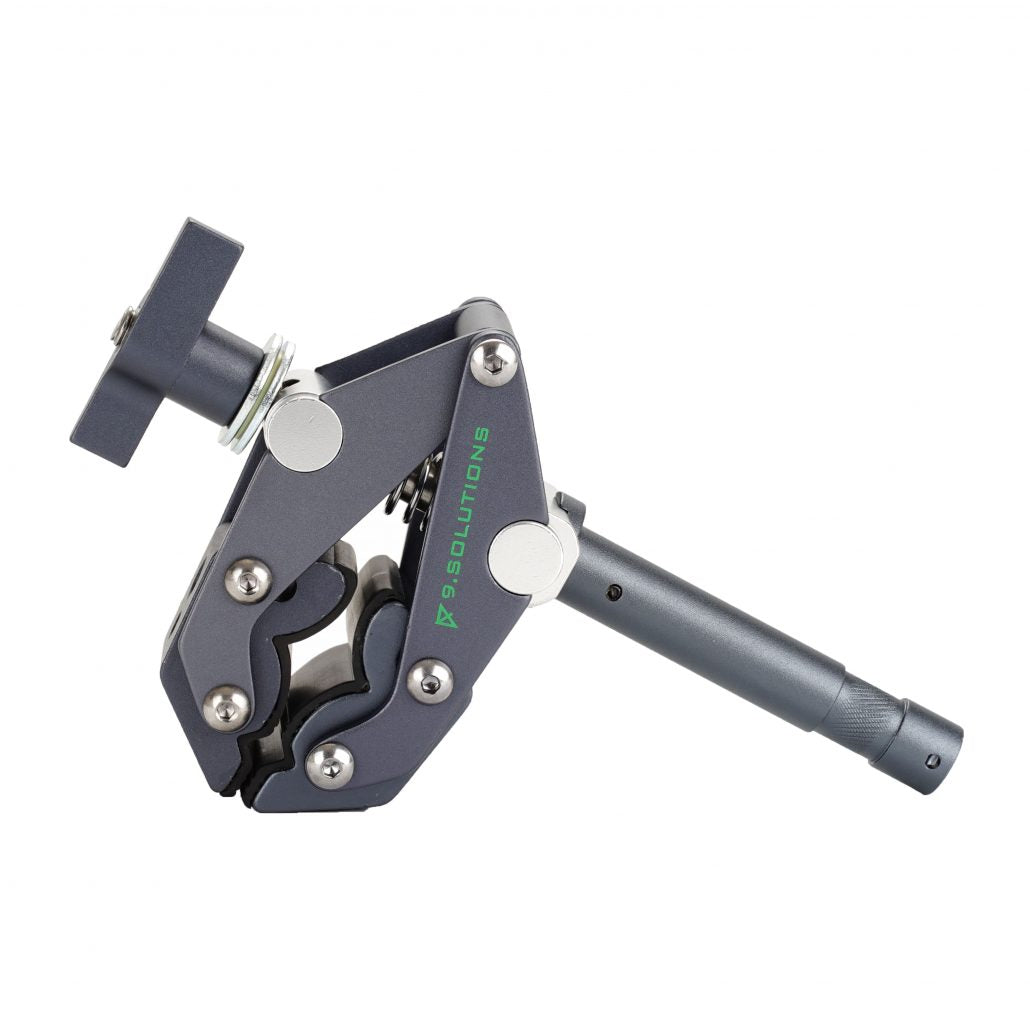

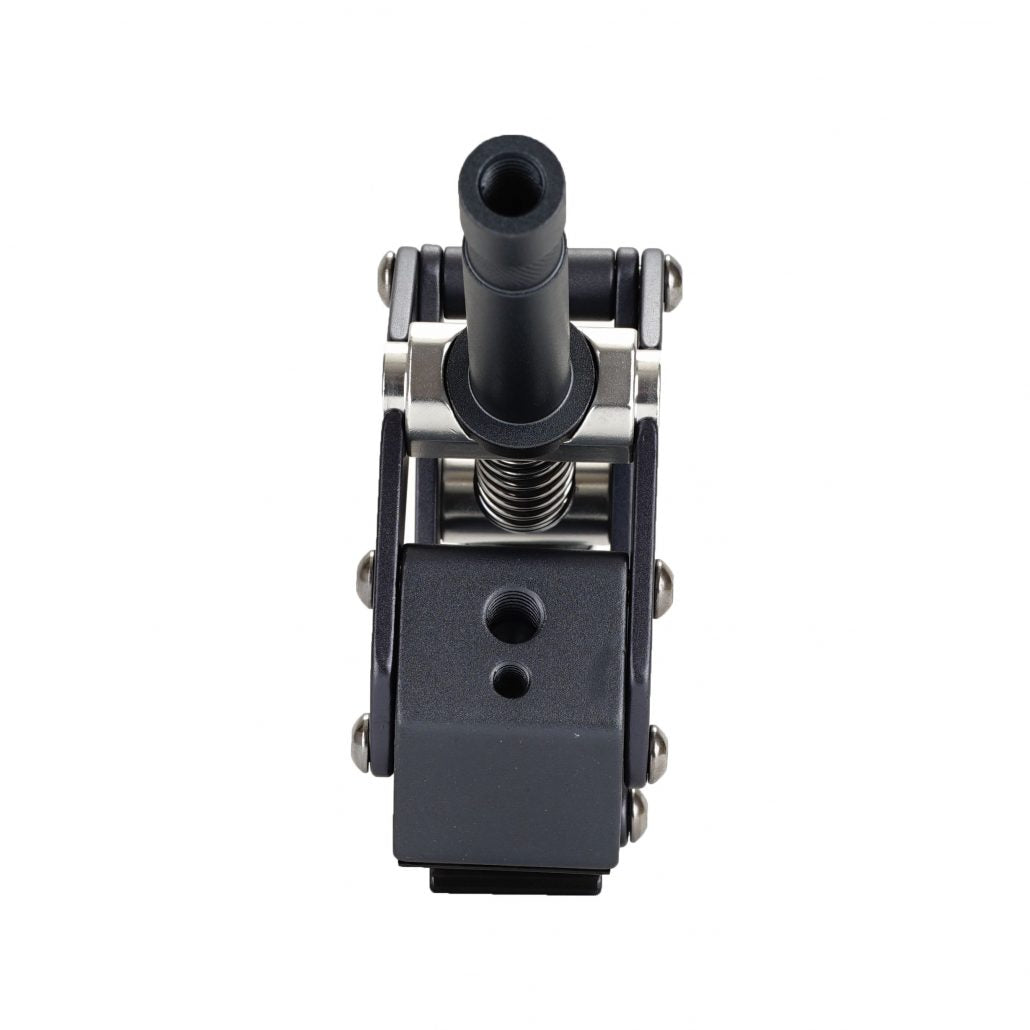

SAVIOR CLAMP WITH STUD
SAVIOR CLAMP WITH STUD
Los Angeles Facility
3022 Durfee Avenue
Unit C
El Monte CA 91732
United States
Description
The Savior Clamp with stud has unique, articulating jaws that can fit firmly onto any oddly shaped object. Whether mounting on round, square, or flat objects, the peak-and-valley design of the jaw allows for multiple points of contact, ensuring a strong grip every time.
The Savior Clamp with stud is fitted with a 3,5In long, 5/8” stud/baby pin (3/8” end tapped) and it is tapped with one 1/4″-20 and one 3/8″-16 female threaded hole on each jaw. This makes it possible to mount multiple pieces of equipment on one clamp. All Savior clamps feature an anodized aluminum surface for added durability and longevity
The handle uses a special Polysorb thrust washer for maximum torque.
The Savior clamp with stud is patent protected
Specifications
Part Number – 9.XS1005A
Weight: 455 g
Clamping Size: 0-60mm
Max Load: 30 Kg
Color: Grey
Connection(s):
(2x) 1/4”-20 Female Thread
(2x) 3/8”-16 Female Thread
(1x) 5/8” stud with tapped 3/8” end
