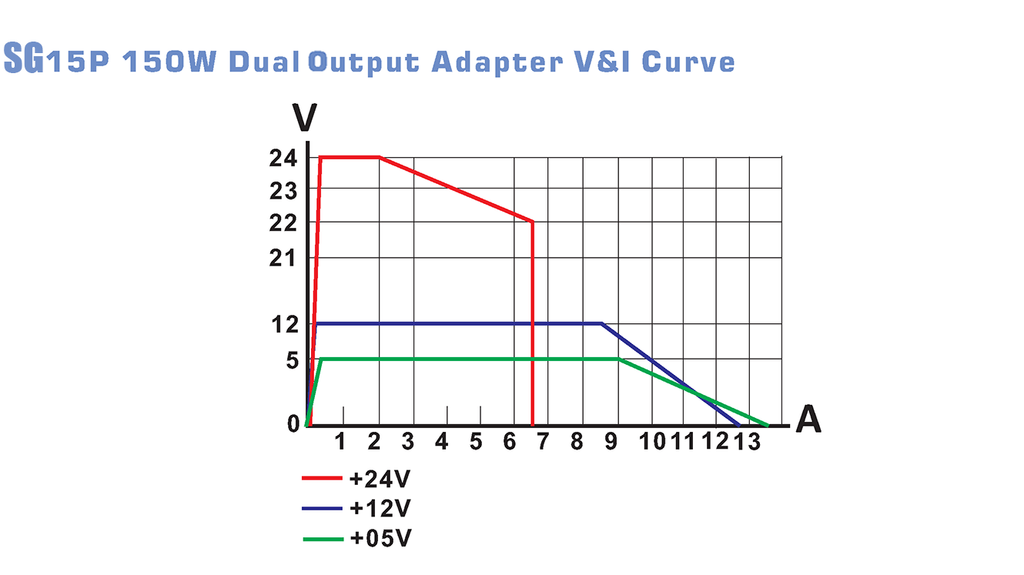

SG15P 150W DUAL OUTPUT UNIVERSAL AC ADAPTER

Sale price Price $85.00 Regular price $105.00 Unit price  per

Shipping calculated at checkout.

AC Adapter

SG15P 150W Dual output series design Special for POS System and Thermal Printer with 10~12A Peak Current for 24V , There are 12V and 5V 3 Models chooses for POS system could shorten size of POS system good quality for Printing all Darkness 100 times Procedure, with global safety approvals such as UL/CE/CB 62368-1 standard The no load power consumption < 0.075W which comply with EISA 2007 / DoE 6 & EU ErP, CoC 5 Tier2 and RoHS compliance. We design 3 most popular types of AC inlet - C14.

  • Universal Input (Full Range 100-240V AC)
  • Thermal Printer Application
  • C14 Inlet
  • Power Factor >=0.9
  • Peak Load 8~10A
  • Best Electro Magnetic Interference under 6db for Production
  • High Efficiency Level VI
  • No Load Power consumption >=0.15W
  • Compact Size L168x W71 x H37.5mm
  • Light Weight <=850gs.
  • Constant Power Mode
  • Low Leakage Current P-S <=0.75mA Class I Type
  • Efficiency Compliance DoE/ErP tier 2/CEC
  • Power Damage Protection OCP/OLP/OVP/Short Circuit
  • Class I Isolation
  • Safety Agency Approval UL62368-1/CB/CE
Model No. EPS P/N I/P Vol. O/P Vol. O/P Current O/P Watts (max.)
SG15P3-A-D4 SG15P3-C-D4-1205xx 90~264VAC 12V VDC 8.5A 150W
5V VDC 9.0A
SG15P3-B-D4 SG15P3-B-D4-2405xx 90~264VAC 24V VDC 4.25 150W
5V VDC 9.0A
SG15P3-C-D4 SG15P3-A-D4-1224xx 90~264VAC 12 VDC 8.50A 150W
24 VDC 2.00A

Remark

3=Class I Isolation, A=17~24V B=12V and 24V , D4=Desk top C14 inlet , xx= Customer code 001~900



Input Voltage 90 ~ 264 VAC
Input Current 1.2A Max. Power Factor >=0.9
Efficiency 85% type. at full load, (Voltages 12V)
(Avg. Eff.) fit requirement for CEC/Erp models level VI Commission Regulation (EU) 2019/1782
Power Factor >=0.9
Output Voltage +12 and +24VDC /+12 and +5VDC/+5V and +24V Dual output
Voltage Regulation ± 5% max.
Max Power 150W
Load regulation ± 5% max. with Min. Load 24V 0.1A and 12V 0.2A
Withstand Voltage I/P - O/P : 3000 VAC (Class II)
I/P - O/P (V+) : 4242 VDC, I/P - FG : 2121 VDC (For Class I)
Operating Temperature -10℃ ~ +60℃
(derated linearly from 100% load @ 40℃ to 50% load @ 60℃)
Storage Temperature -20 °C ~ +85 °C
Operating Humidity 20% to 90% RH
Protections OPP,OVP, OLP. Short Circuit Protection
Safety standard to meet IEC / EN 60950-1/62368-1, CE, LVD, ErP tier 2
EMC Standard (EN55032,EN55035, CISPR22, FCC Part 15) Class B,
EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55035
ESD EN61000-4-2 air ± 8kV , Contact ± 4kV
MTBF Calculated per MIL-HDBK-217F @ 25°C GB >50,000 Hrs
Standard output connector Optional as attached
Standard output cable/length UL2464   / 1.2M Length 18 Awg 6C
Weight main body  ~=810g

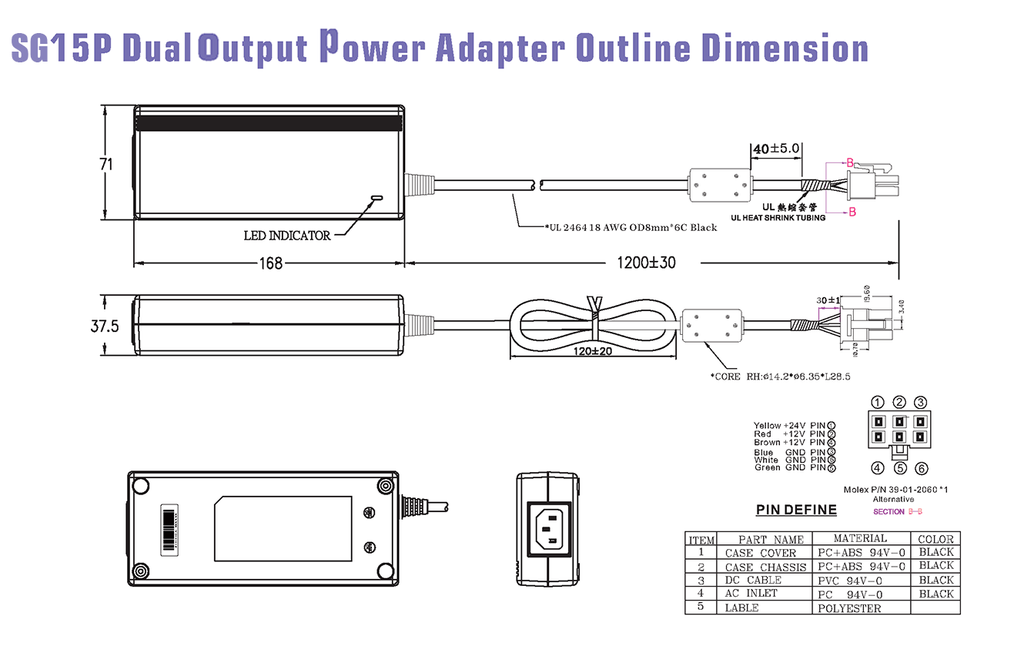

Size L168 x W70 x H38 mm C14 Inlet
Warranty 2 years

Notes

  • All parameters are specified at 115VAC input, rated load, 25 70% RH ambient.
  • Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 f & 47 f capacitor.
  • DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  • Tolerance: includes set up tolerance, line regulation, load regulation.
  • Line regulation is measured from low line to high line at rated load.
  • Load regulation is measured from 10% to 100% rated load.
  • Derating may be needed under low input voltage. Please check the derating curve for more details.
  • The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies EMC.
